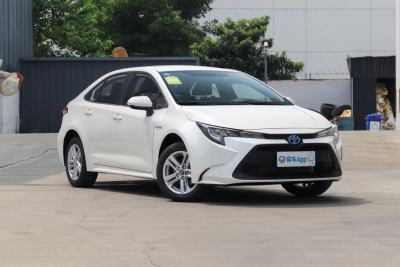

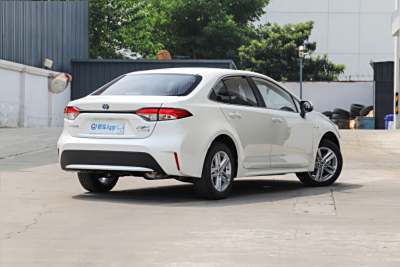

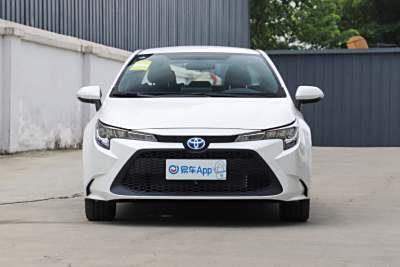

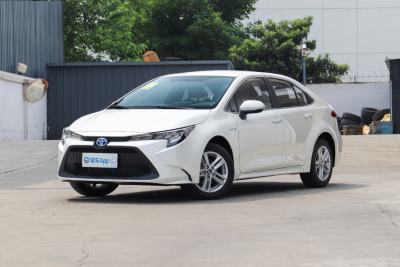

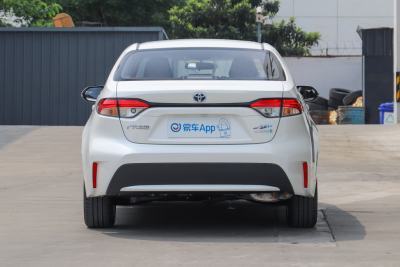

2019 Toyota Levin Hybrid 1.8H E-CVT Entry Edition (China VI Emission)

1. Model & Basic Info

• Model Name: 2019 Toyota Levin Hybrid 1.8H E-CVT Entry Edition (China VI Emission Standard)
• Manufacturer: GAC Toyota (Guangzhou Automobile Toyota Motor Co., Ltd.)
• Market Position: Entry-level trim of 2019 Levin Hybrid series (TNGA platform-based)

2. Exterior Dimensions

3. Powertrain & Chassis

• Power Type: Gas-Electric Hybrid (HEV, non-plug-in)
• Engine: 1.8L Inline 4-Cylinder Atkinson Cycle Engine (Model: 8ZR-FXE)
  • Displacement: 1798 cc
  • Maximum Power: 72 kW (98 PS) @ 5200 rpm
  • Maximum Torque: 142 N·m @ 3600 rpm
  • Fuel Supply System: Multi-point Electronic Fuel Injection
  • Emission Standard: China National VI (GB18352.6-2016)
  • Recommended Fuel: Gasoline 92# (RON 92)
• Electric Motor: Front-mounted Permanent Magnet Synchronous Motor
  • Motor Power: 53 kW (72 PS)
  • Motor Torque: 163 N·m
• Combined System Power: 90 kW

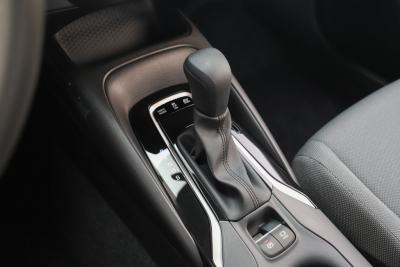

• Transmission: E-CVT (Electronic Continuously Variable Transmission)
• Drivetrain: Front-Wheel Drive (FWD)
• Suspension:
  • Front: MacPherson Strut Independent Suspension
  • Rear: E-Type Multi-Link Independent Suspension
• Brakes:
  • Front: Ventilated Disc Brakes
  • Rear: Solid Disc Brakes
  • Parking Brake: Electronic Parking Brake (EPB) + Auto Hold
• Wheels & Tires: 15-inch Aluminum Alloy Wheels; Tires: 195/65 R15; Spare Tire: Non-full-size Temporary Spare

4. Weight & Capacity

• Curb Weight: 1410 kg
• Maximum Gross Vehicle Weight: 1845 kg (Maximum Payload: ~435 kg)
• Fuel Tank Capacity: 43 L
• Trunk Volume: 470 L (VDA standard, rear seats fixed)

5. Performance & Fuel Economy

• Top Speed: 160 km/h
• 0-100 km/h Acceleration Time: Not officially disclosed (typical for class: ~11-12 seconds)
• Combined Fuel Consumption (NEDC Cycle): 4.1 L/100km
• Urban Fuel Consumption (NEDC): ~4.5 L/100km
• Highway Fuel Consumption (NEDC): ~3.8 L/100km

6. Safety Features

• Active Safety Systems:
  • ABS (Anti-lock Braking System)
  • EBD (Electronic Brake-force Distribution)
  • EBA (Electronic Brake Assist)
  • TCS (Traction Control System)
  • VSC (Vehicle Stability Control, equivalent to ESP)
  • HAC (Hill-Start Assist Control)
  • Auto Hold
• Passive Safety Systems:
  • 7 Airbags (Dual Front Airbags, Front Side Airbags, Front/Rear Side Curtain Airbags, Driver’s Knee Airbag)
  • ISOFIX Child Seat Anchors (with Top Tether)
  • Tire Pressure Monitoring System (TPMS, Digital Display)
  • High-Strength Steel Body (TNGA safety structure)

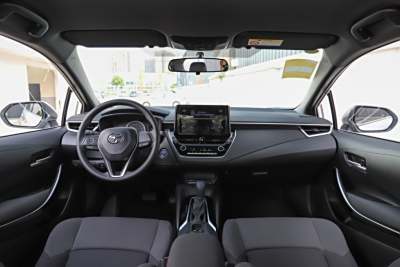

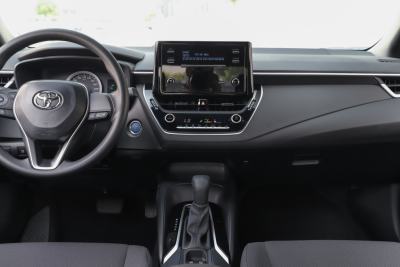

7. Interior & Convenience

• Seats:
  • Material: Fabric (Entry Edition standard)
  • Front Seats: Manual adjustment (height, slide, recline)
  • Rear Seats: 60/40 Split-Folding (with armrest optional on higher trims, not standard on Entry Edition)

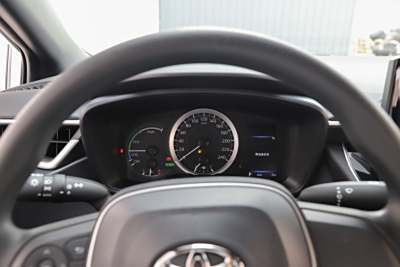

• Instrument Cluster: 4.2-inch Color TFT Multi-Information Display (MID) + Analog Speedometer
• Infotainment System:
  • Touchscreen Size: 8-inch
  • Functions: Bluetooth Hands-Free Calling, Bluetooth Audio Streaming, CarLife (Android), USB/Type-C Port (1x, front console)
  • Speakers: 6-speaker Audio System
• Climate Control: Automatic Single-Zone Air Conditioning with PM2.5 Air Filtration
• Steering Wheel:
  • Material: Hard Plastic (Entry Edition)
  • Adjustment: 4-Way (Tilt & Telescoping)
  • Controls: Multi-Function Buttons (audio, cruise, MID)
• Entry & Start: Push-Button Start (standard) + Remote Key (Keyless Entry not standard on Entry Edition)

8. Exterior Features

• Lighting:
  • Headlights: Halogen Low/High Beams (manual leveling)
  • Front Fog Lights: LED (standard)
  • Tail Lights: LED Combination Lights
  • Daytime Running Lights (DRLs): LED (integrated with headlights)
• Exterior Trim:
  • Body-Colored Front/Rear Bumpers
  • Body-Colored Side Mirrors (manual folding, power adjustment)
  • Rear Window Defroster (with timer)
  • Roof Antenna (Shark Fin Type)
