2019 Toyota Levin Hybrid 1.8L E-CVT Luxury Edition (China VI Emission)

1. Model & Core Information

• Model Name: 2019 Toyota Levin Hybrid 1.8L E-CVT Luxury Edition (China National VI Emission Standard)
• Manufacturer: GAC Toyota (Guangzhou Automobile Toyota Motor Co., Ltd.)
• Market Position: Mid-to-high trim of the 2019 Levin Hybrid lineup (based on TNGA platform), positioned above the Entry Edition with enhanced comfort and convenience features

2. Exterior Dimensions

3. Powertrain & Chassis

• Power Type: Gas-Electric Hybrid (HEV, non-plug-in)
• Engine: 1.8L Inline 4-Cylinder Atkinson Cycle Engine (Model: 8ZR-FXE)
  • Displacement: 1798 cc
  • Maximum Power: 72 kW (98 PS) @ 5200 rpm
  • Maximum Torque: 142 N·m @ 3600 rpm
  • Fuel Supply: Multi-point Electronic Fuel Injection
  • Emission Compliance: China VI (GB18352.6-2016)
  • Recommended Fuel: Gasoline 92# (RON 92)
• Electric Motor: Front-mounted Permanent Magnet Synchronous Motor
  • Motor Power: 53 kW (72 PS)
  • Motor Torque: 163 N·m
• Combined System Power: 90 kW
• Transmission: E-CVT (Electronic Continuously Variable Transmission) with shift-by-wire control
• Drivetrain: Front-Wheel Drive (FWD)
• Suspension:
  • Front: MacPherson Strut Independent Suspension (with stabilizer bar)
  • Rear: E-Type Multi-Link Independent Suspension (with stabilizer bar)
• Brakes:
  • Front: Ventilated Disc Brakes
  • Rear: Solid Disc Brakes
  • Parking Brake: Electronic Parking Brake (EPB) + Auto Hold (standard)
• Wheels & Tires: 16-inch Aluminum Alloy Wheels; Tires: 205/55 R16 (wider than Entry Edition’s 195/65 R15); Spare Tire: Non-full-size Temporary Spare

4. Weight & Capacity

• Curb Weight: 1435 kg (25 kg heavier than Entry Edition, due to additional features)
• Maximum Gross Vehicle Weight: 1870 kg
• Maximum Payload: ~435 kg
• Fuel Tank Capacity: 43 L

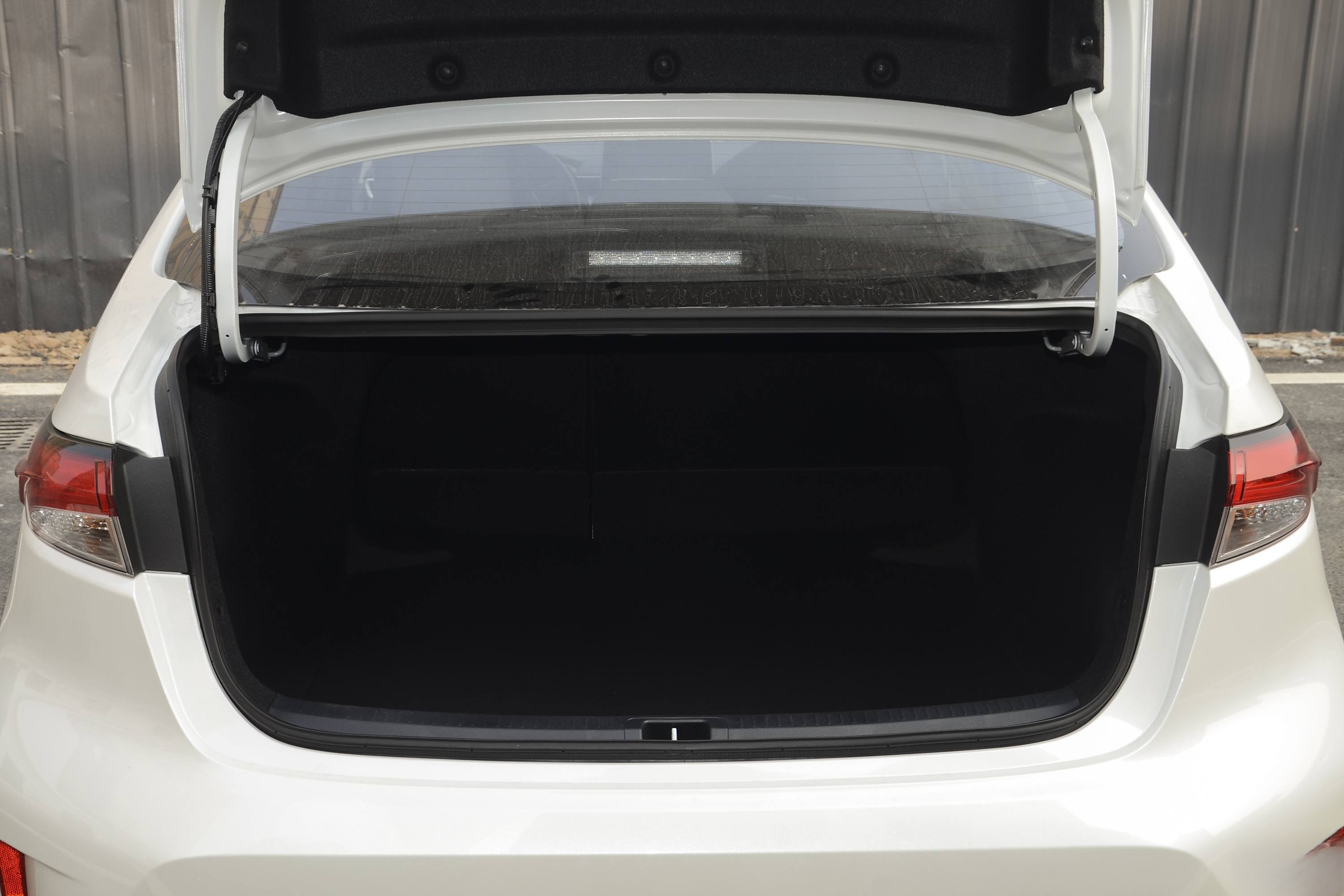

• Trunk Volume: 470 L (VDA standard; rear seats support 60/40 split-folding for expanded space)

5. Performance & Fuel Economy

• Top Speed: 160 km/h (same as Entry Edition, due to identical powertrain)
• 0-100 km/h Acceleration Time: Not officially disclosed (estimated ~11-12 seconds, consistent with Entry Edition)
• Combined Fuel Consumption (NEDC Cycle): 4.1 L/100km (same as Entry Edition, despite larger tires)
• Urban Fuel Consumption (NEDC): ~4.6 L/100km
• Highway Fuel Consumption (NEDC): ~3.8 L/100km

6. Safety Features

• Active Safety & Driver Assistance:
  • Basic Systems: ABS, EBD, EBA, TCS, VSC (Vehicle Stability Control), HAC (Hill-Start Assist Control)
  • Advanced Features: Toyota Safety Sense (TSS) – includes LDW (Lane Departure Warning), LKA (Lane Keeping Assist), FCW (Forward Collision Warning), AEB (Autonomous Emergency Braking), AHB (Adaptive High-Beam)
  • Full-Speed Range Adaptive Cruise Control (ACC) (standard; Entry Edition may lack this or offer it as an option)
• Passive Safety:
  • Airbags: 7 Airbags (Dual Front Airbags, Front Side Airbags, Front/Rear Side Curtain Airbags, Driver’s Knee Airbag)
  • Structural Safety: TNGA High-Strength Steel Body (60% high-tensile steel usage)
  • Other: ISOFIX Child Seat Anchors (with Top Tether), Tire Pressure Monitoring System (TPMS) with digital display, Anti-theft Alarm System (standard; optional on Entry Edition)

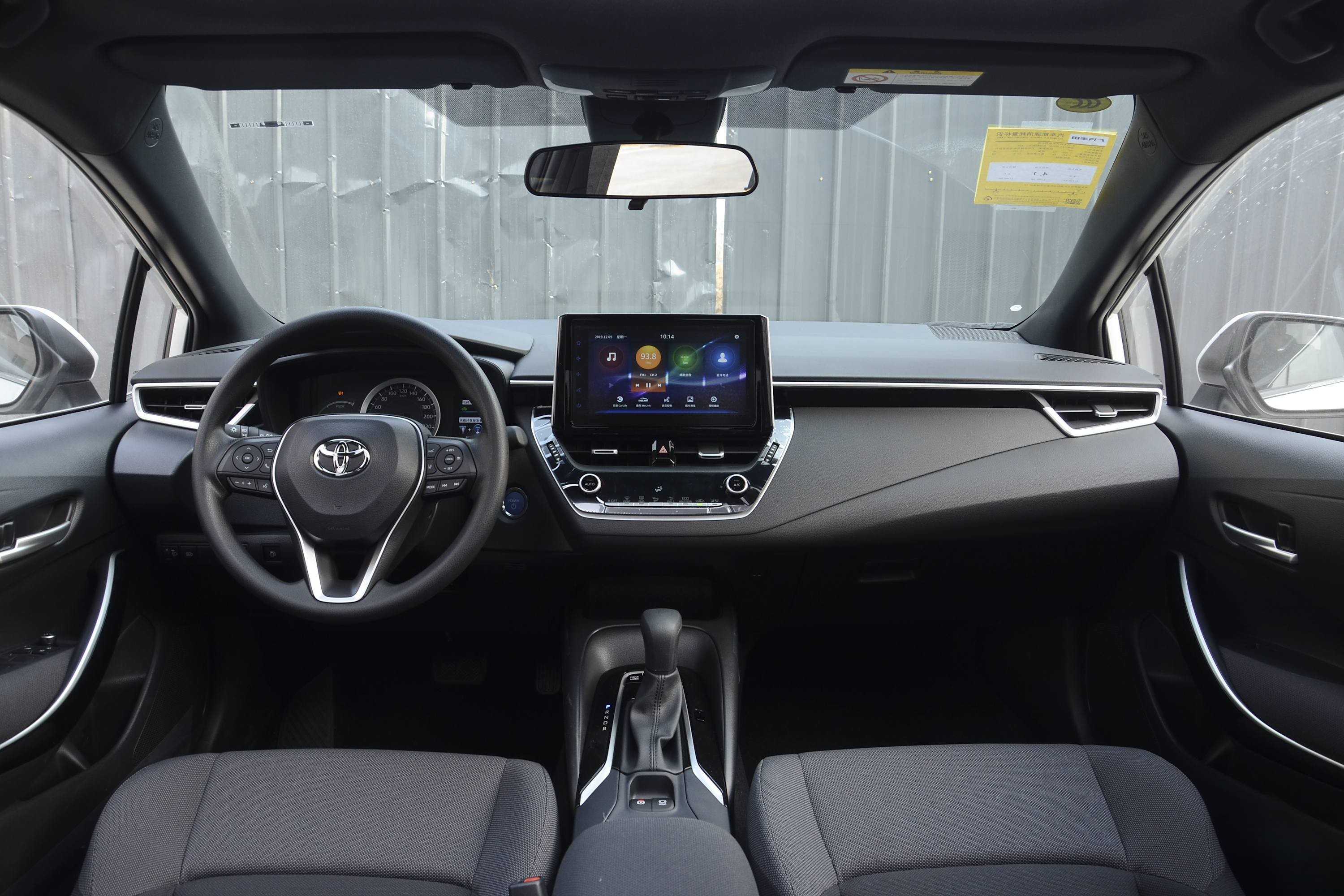

7. Interior & Convenience

• Seats & Upholstery:
  • Material: Synthetic Leather (PVC) + Fabric Combination (upgrade from Entry Edition’s full fabric)

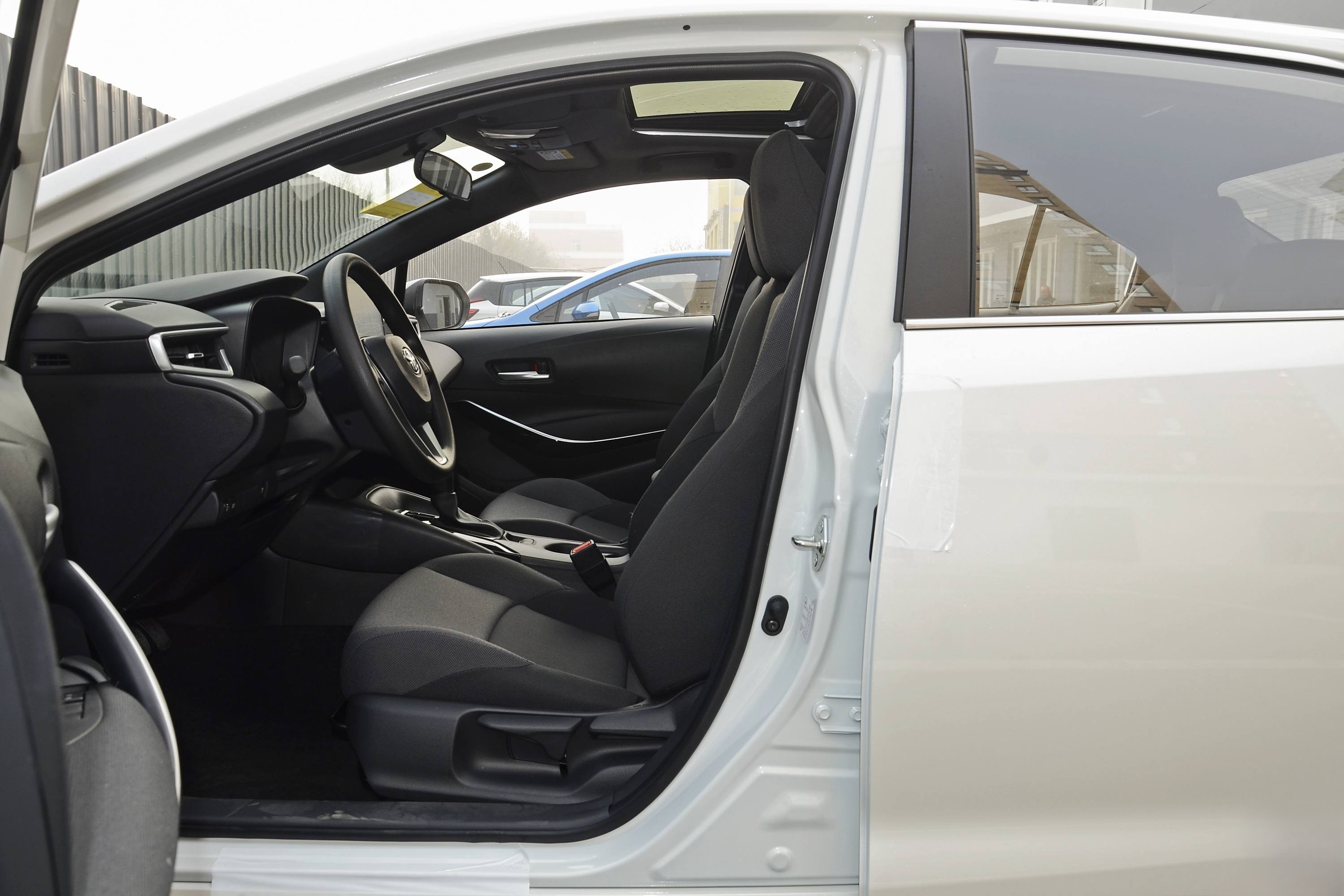

  • Front Seats: Driver’s seat – 6-way manual adjustment (height, slide, recline); Passenger seat – 4-way manual adjustment

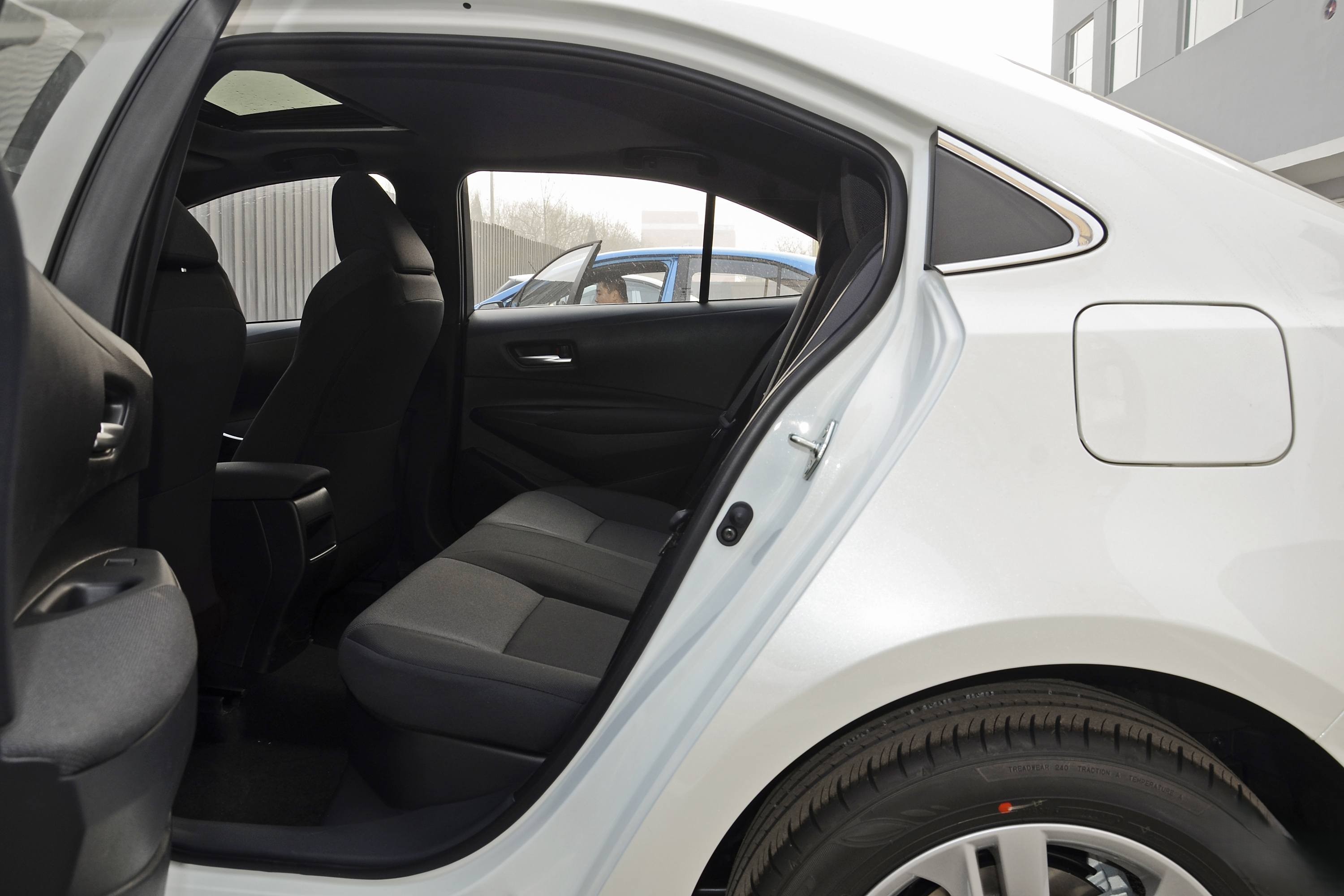

  • Rear Seats: Foldable armrest with cup holders (standard; not available on Entry Edition); rear air vents (standard)

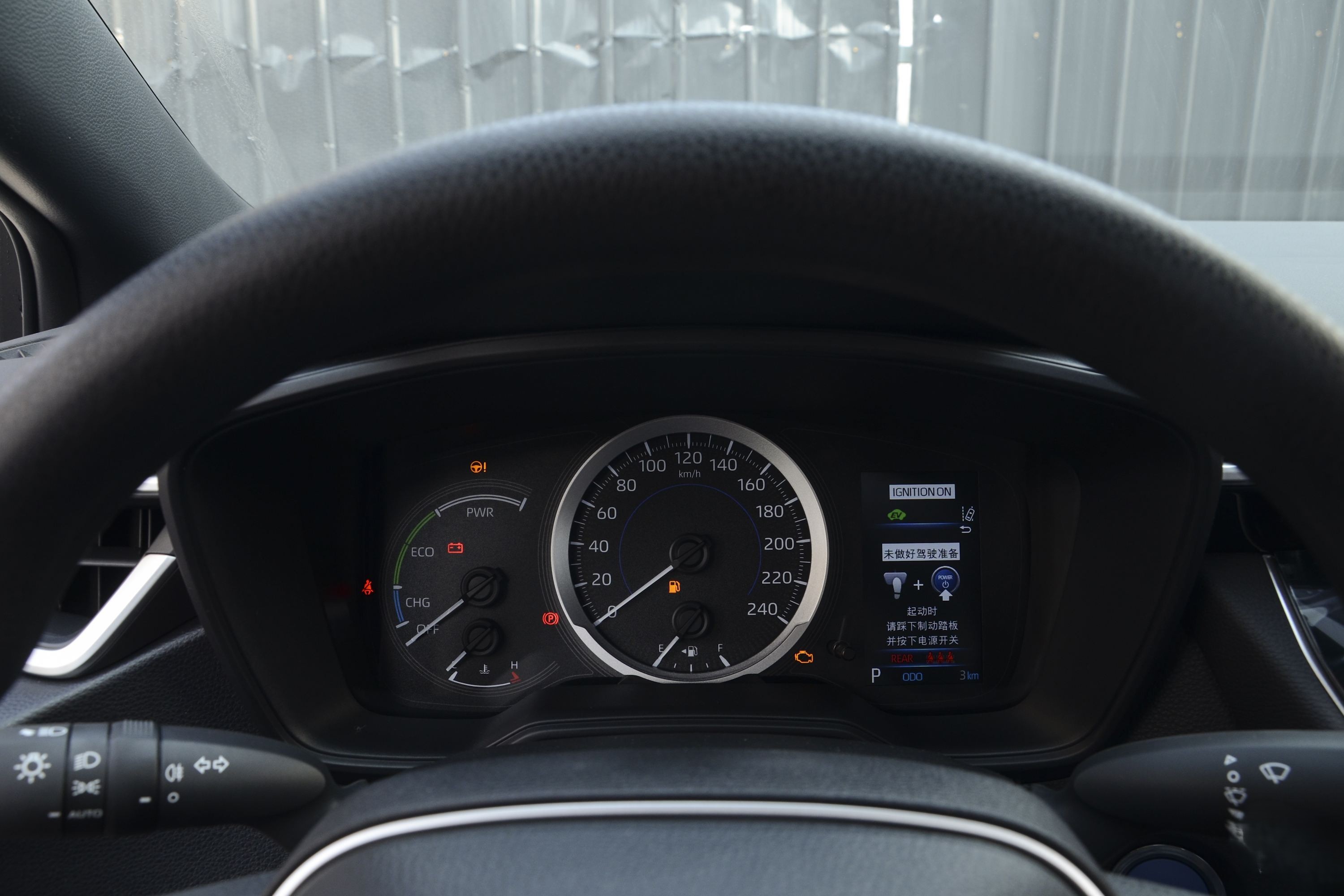

• Instrument Cluster: 4.2-inch Color TFT Multi-Information Display (MID) + Analog Speedometer; includes hybrid system status, fuel economy, and TSS alerts
• Infotainment & Connectivity:
  • Touchscreen: 10.1-inch Capacitive Touchscreen (larger than Entry Edition’s 8-inch)
  • Functions: Bluetooth Hands-Free Calling/Audio, CarLife (Android) + CarPlay (iOS) (Entry Edition may lack CarPlay), USB Ports (2x: 1 front USB-A, 1 front Type-C)
  • Audio System: 6-Speaker System (same as Entry Edition, but optimized for cabin acoustics)
• Climate Control: Automatic Dual-Zone Air Conditioning (upgrade from Entry Edition’s single-zone) + PM2.5 Air Filtration + Rear Air Vents
• Steering Wheel:
  • Material: Leather-Wrapped (upgrade from Entry Edition’s hard plastic)
  • Adjustment: 4-Way (Tilt & Telescoping)
  • Controls: Multi-Function Buttons (audio, cruise, TSS settings, MID)
• Entry & Start: Smart Keyless Entry (front doors) + Push-Button Start (standard; Entry Edition only has push-button start, no keyless entry)
• Other Conveniences: Power Windows (one-touch up/down for all windows), Power-Adjustable Side Mirrors (with heating function, upgrade from Entry Edition’s manual heating), Rearview Mirror with Auto-Dimming (optional on Entry Edition, standard here)

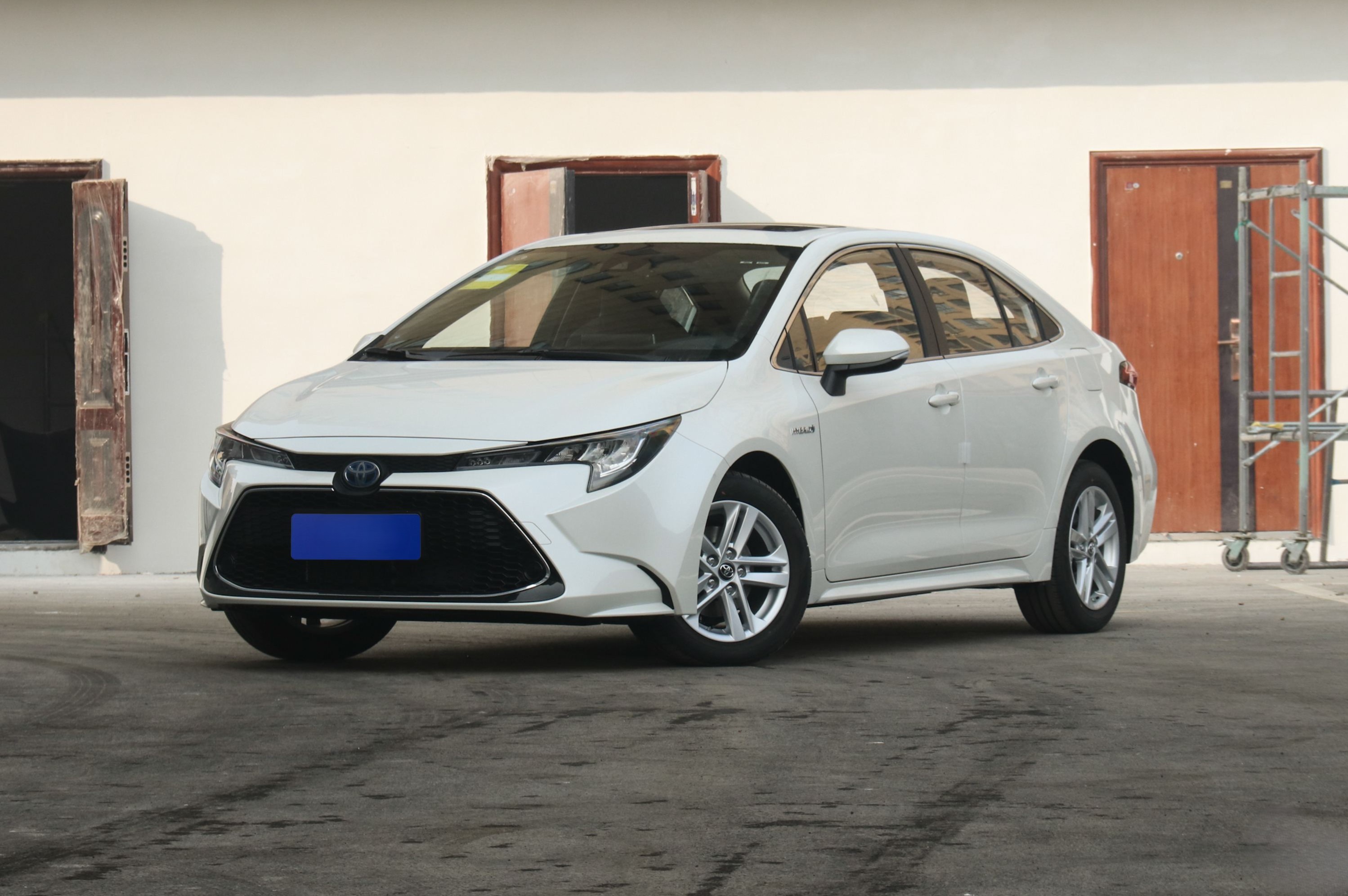

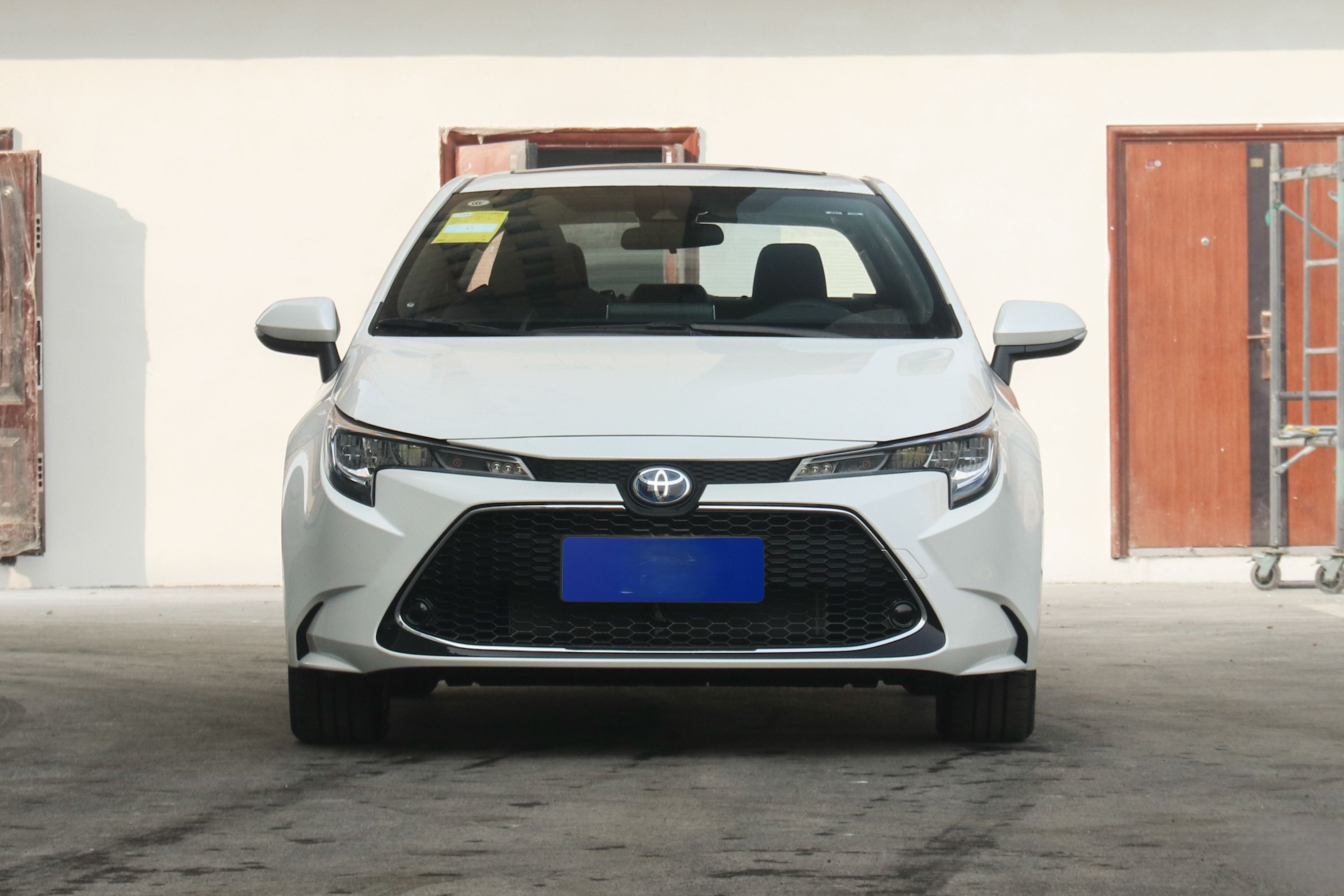

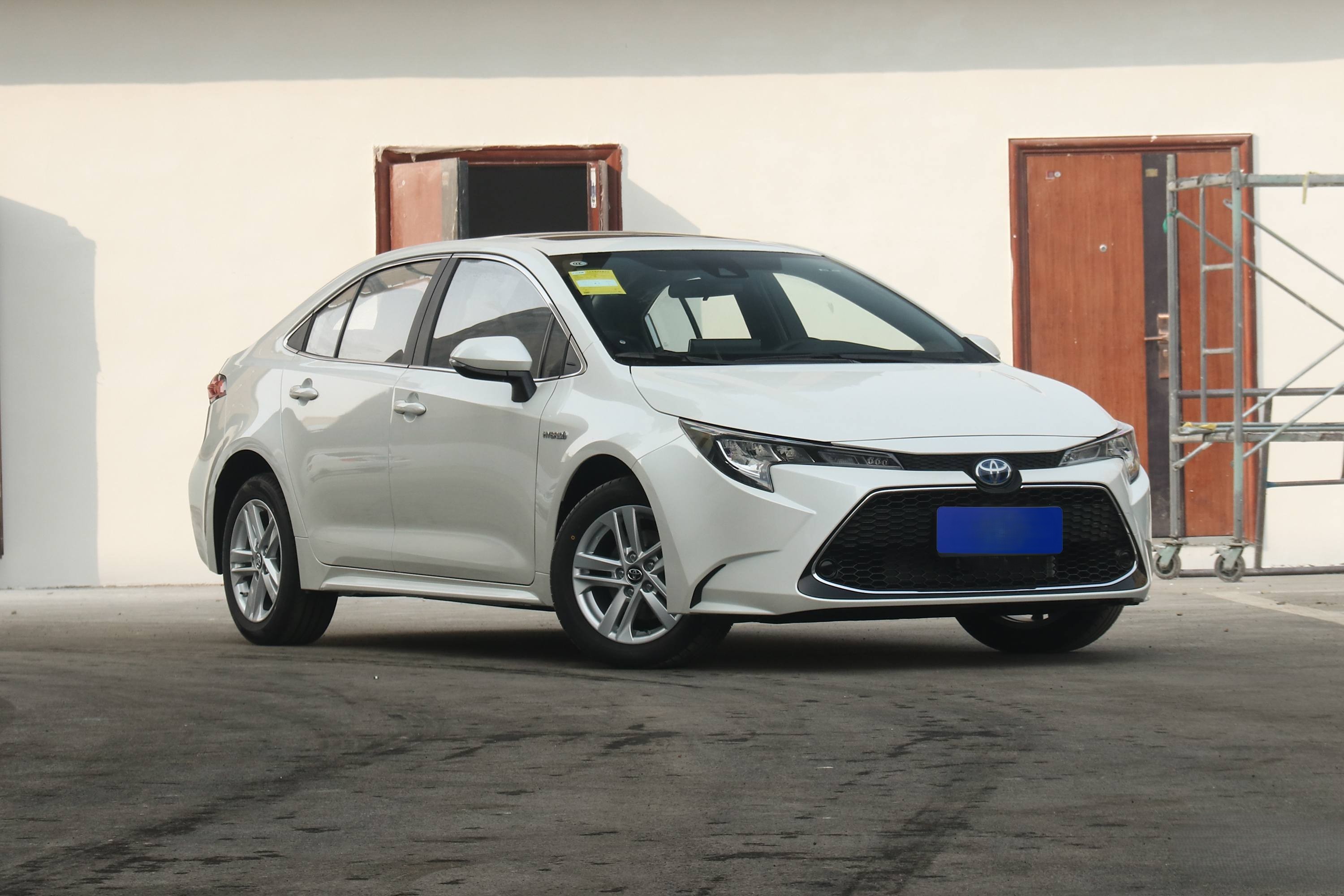

8. Exterior Features

• Lighting:
  • Headlights: Halogen Low/High Beams (with manual leveling) + LED Daytime Running Lights (DRLs) (integrated)
  • Front Fog Lights: LED (standard)
  • Tail Lights: LED Combination Lights (with sequential turn signals, optional on Entry Edition)
  • Other: Auto-On/Off Headlights (standard; optional on Entry Edition)
• Exterior Trim:
  • Body-Colored Front/Rear Bumpers (with chrome accents on grille and fog light surrounds)
  • Body-Colored Side Mirrors (with integrated turn signal lamps, upgrade from Entry Edition’s non-signal mirrors)
  • Sunroof: Single-Panel Electric Sunroof (standard; not available on Entry Edition)
  • Other: Rear Spoiler (body-colored, standard), Shark Fin Antenna, Rear Window Defroster (with timer)
