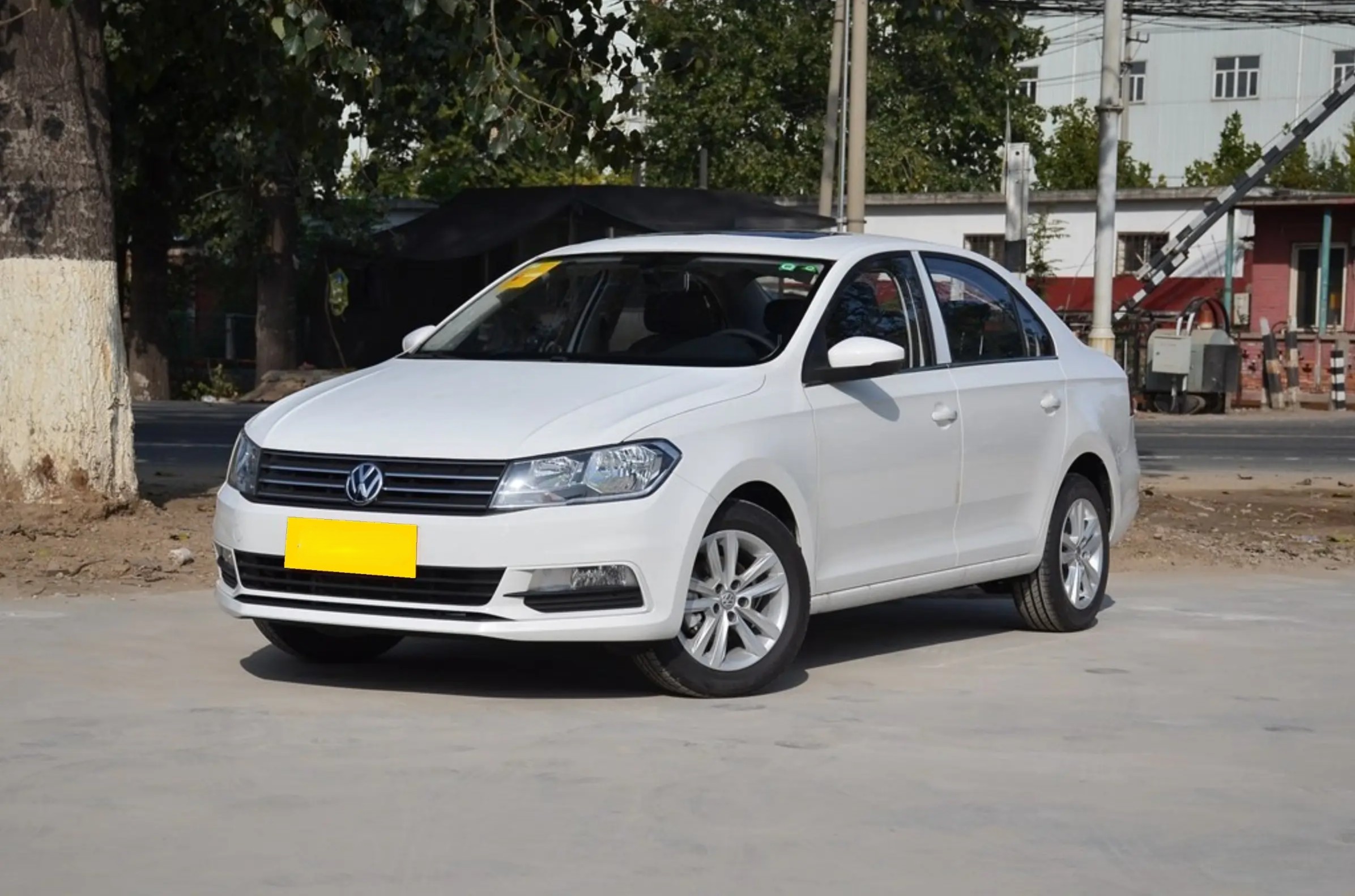

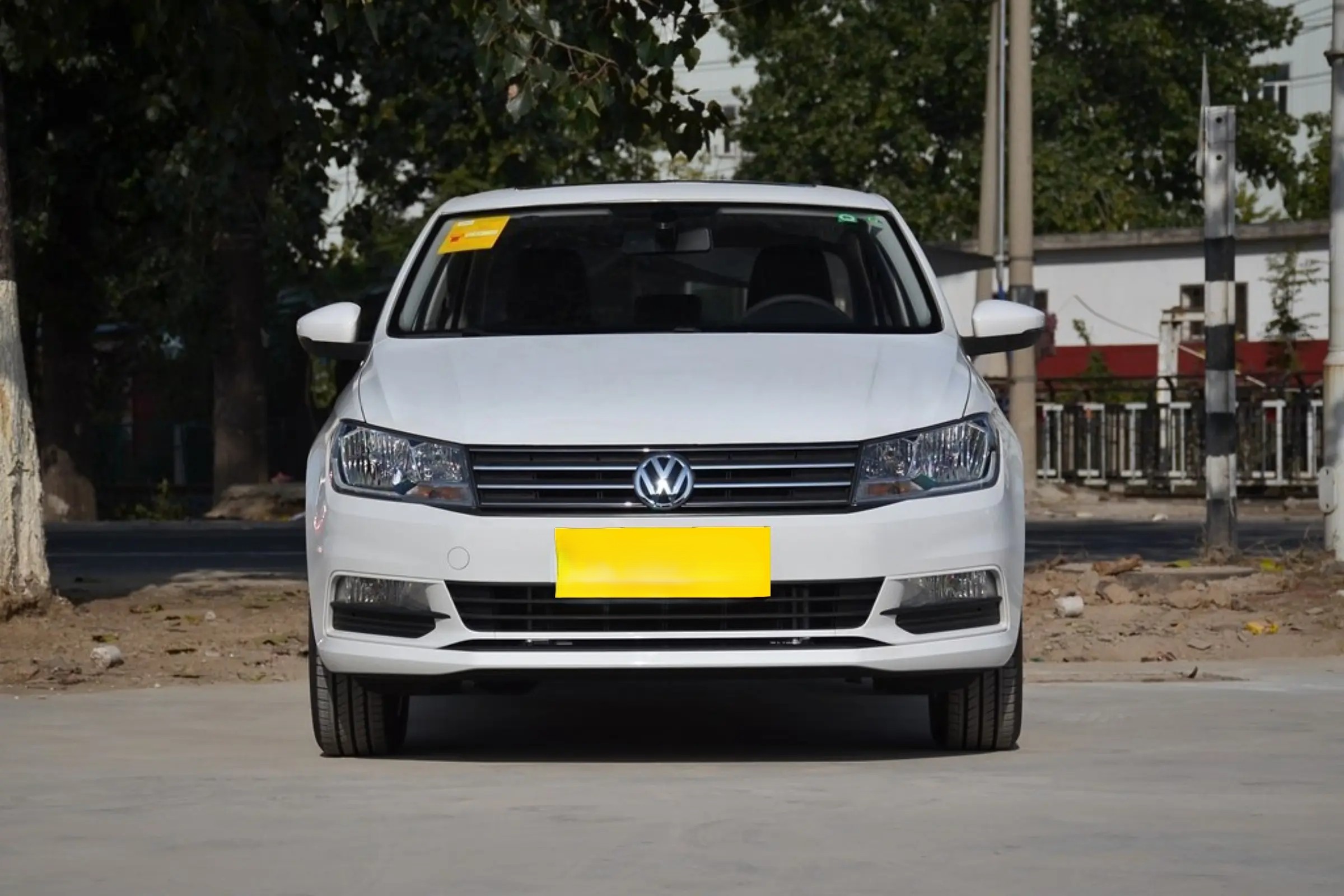

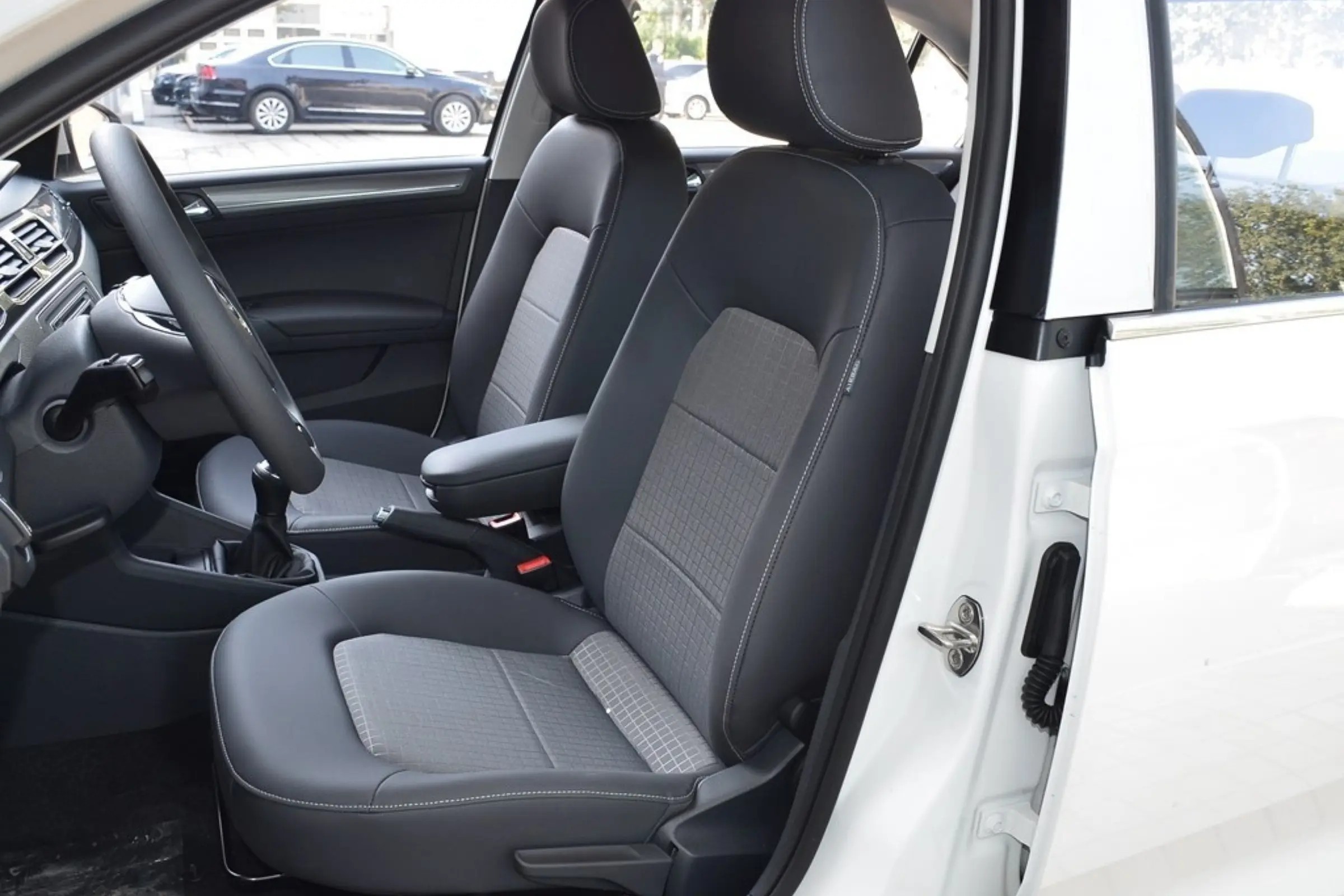

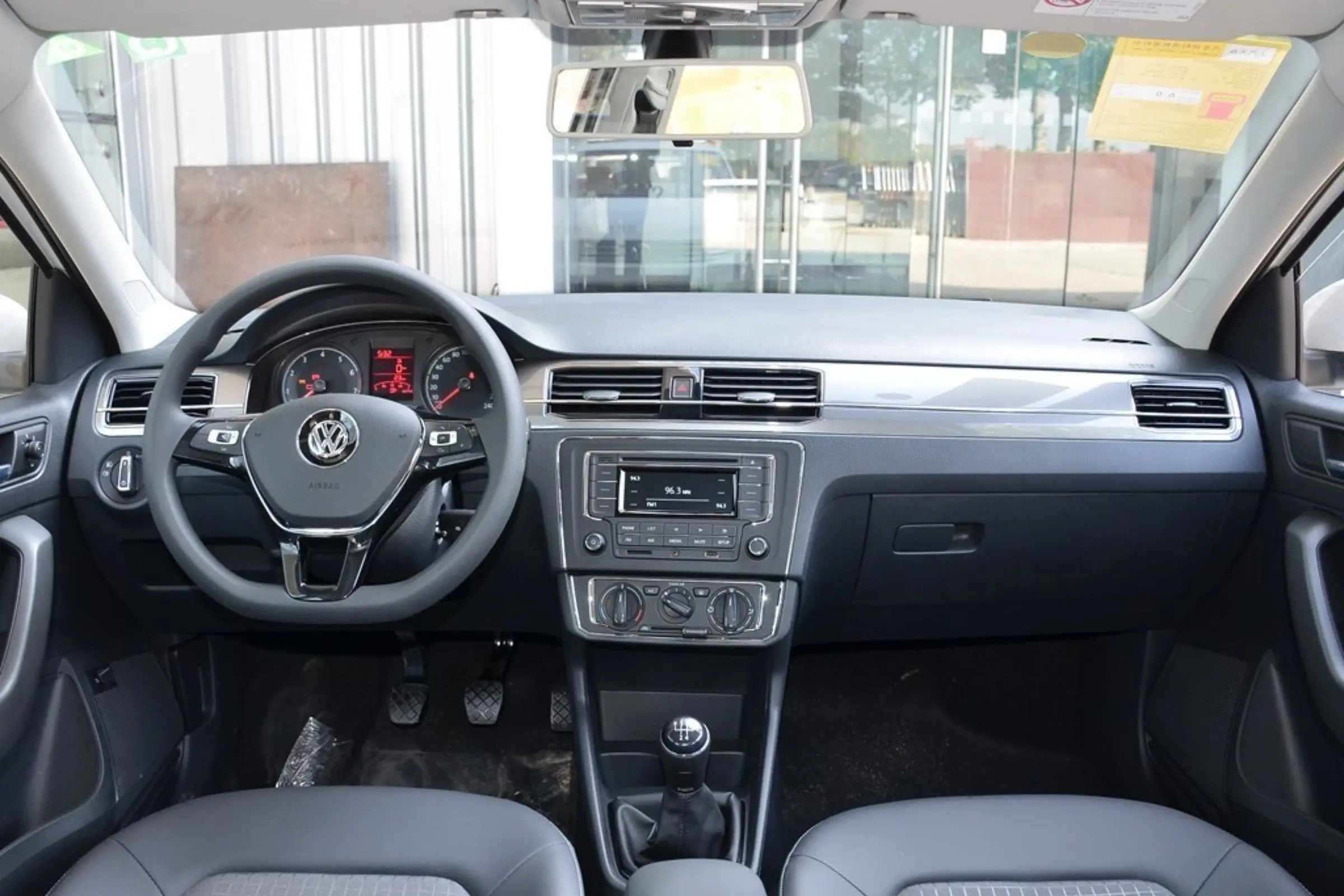

2016 Santana 1.6L Manual Comfort Edition

1. Basic Information

• Brand: Volkswagen
• Model: 2016 Santana 1.6L Manual Comfort Edition
• Vehicle Type: Compact Sedan
• Energy Type: Gasoline
• Launch Time: 2016

2. Body Parameters

• Length × Width × Height (mm): 4473×1706×1469
• Wheelbase (mm): 2603
• Number of Doors: 4
• Number of Seats: 5
• Curb Weight (kg): Approximately 1120
• Fuel Tank Capacity (L): 55
• Luggage Compartment Capacity (L): 466

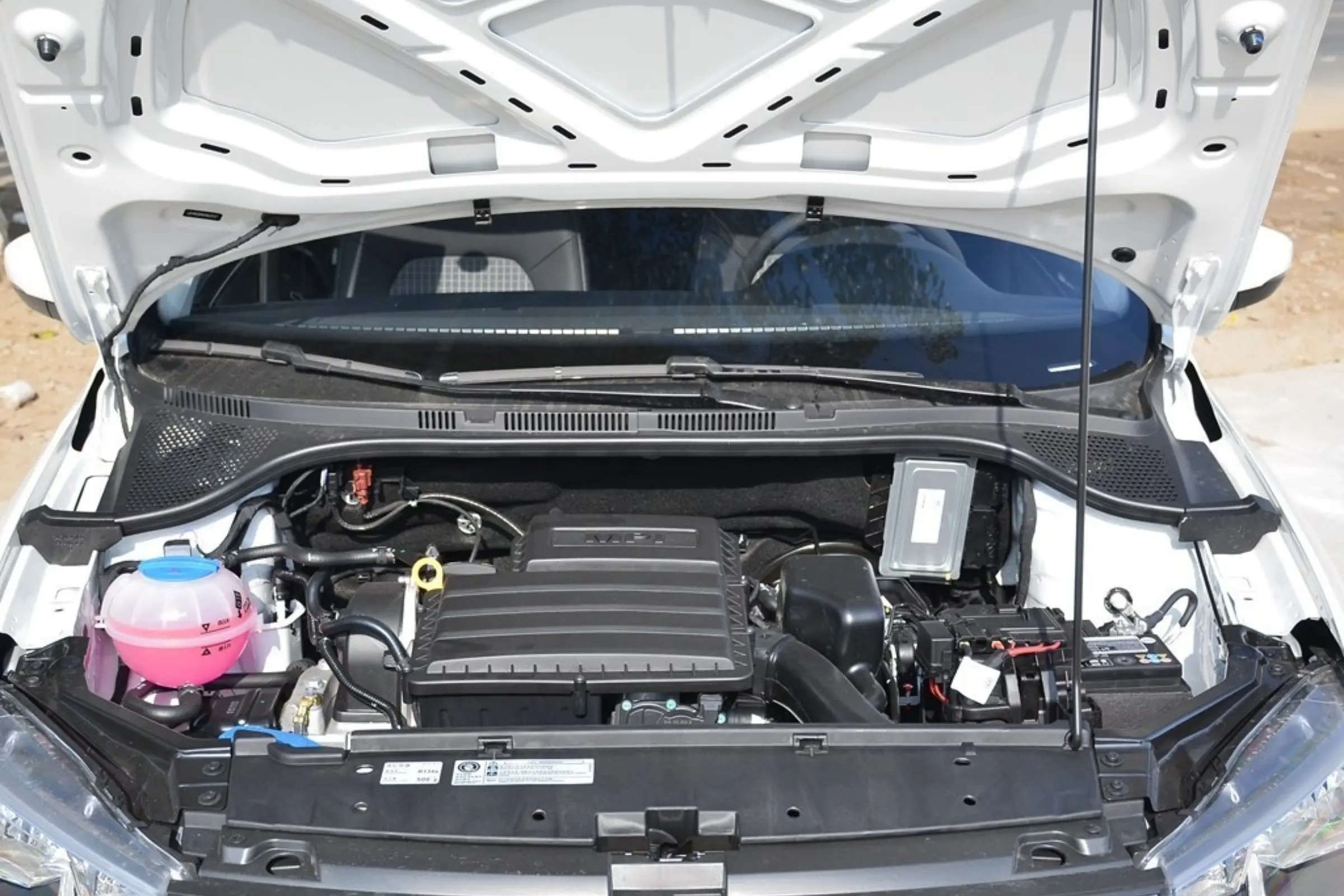

3. Engine Parameters

• Engine Model: EA211
• Displacement (mL): 1598
• Intake Form: Natural Aspiration
• Cylinder Arrangement: In - line 4 - cylinder
• Number of Valves per Cylinder: 4
• Valve Train: DOHC (Double Overhead Camshaft)
• Maximum Horsepower (Ps): 110
• Maximum Power (kW): 81
• Maximum Power Speed (rpm): 6000
• Maximum Torque (N·m): 155
• Maximum Torque Speed (rpm): 3800
• Fuel Form: Gasoline
• Fuel Grade: 92# or above
• Fuel Supply Method: Multi - point Fuel Injection
• Cylinder Head Material: Aluminum alloy
• Cylinder Block Material: Aluminum alloy
• Emission Standard: National V

4. Transmission Parameters

• Transmission Type: Manual Transmission (MT)
• Number of Gears: 5 - speed

5. Chassis and Suspension

• Driving Method: Front - wheel Drive
• Front Suspension Type: MacPherson Independent Suspension
• Rear Suspension Type: Torsion Beam Non - independent Suspension
• Steering Type: Electric Power Assist
• Body Structure: Load - bearing

6. Braking and Wheel Parameters

• Front Brake Type: Ventilated Disc
• Rear Brake Type: Drum
• Parking Brake Type: Handbrake
• Front Tire Size: 185/60 R15
• Rear Tire Size: 185/60 R15
• Spare Tire Specification: Non - full - size
